Compact Series

For easy maintenance on high voltage switchgear

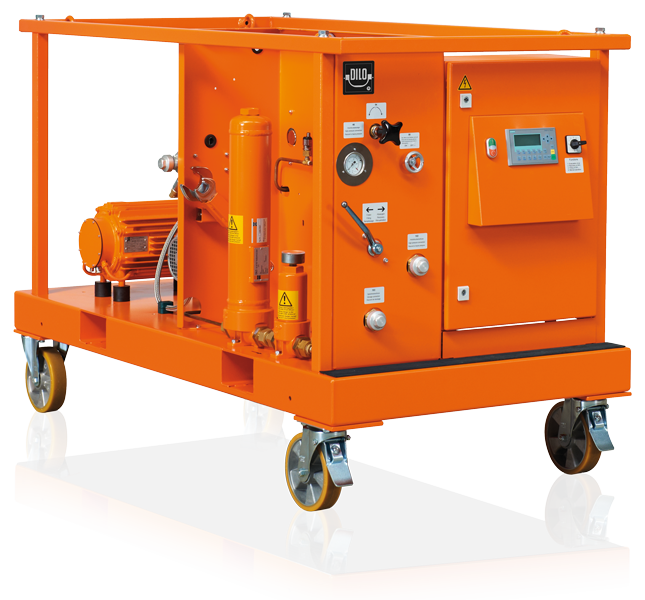

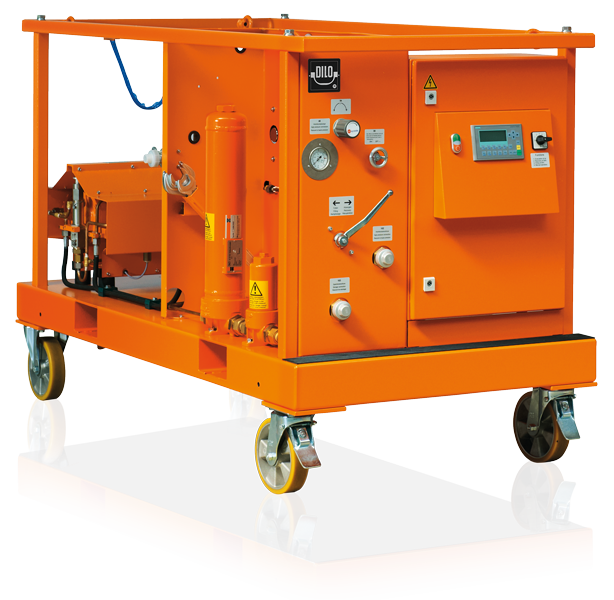

B057R17/B058R03

This robust series comprises several versions allowing gaseous and liquid SF6 storage. SF6 gas can be recovered to a final vacuum of < 5 mbar or 1 mbar and exceeds IEC 62271-4 regulations by far.

All devices of this type series are equipped with a semi-automatic control and are easy to operate: The functions are selected by means of a 3-way ball valve and a selector switch. The pressure units (bar/mbar, kPa or psi/torr) can be chosen on the operating panel.

The Compact Series is the perfect choice in case a robust and user-friendly device is required for maintenance works on high voltage switchgear.

Other features:

Device for liquid storage of SF6 gas

SF6 gas recovery down to < 5 mbar or 1 mbar

Semi-automatic control and 3.6" operating panel

Residual gas recovery down to 5 or 1 mbar during filter change

Reduction to transport pressure as integrated special function

All versions are available with tanks which can be assembled under the device with CE marking also available with SQL and ASME approval
