Evacuating and refilling device

For evacuation of air and refilling of gas compartments from SF6 gas bottles

3-001-4-R002

Mobile as cylinder cart

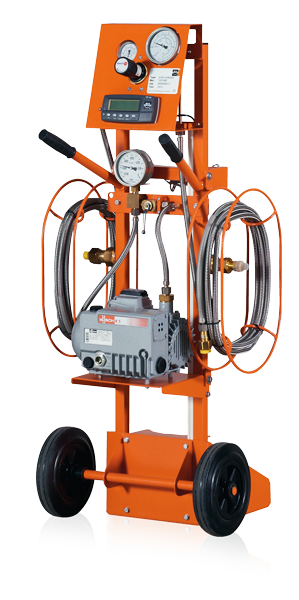

3-001-4-R022 with electronic weighing scales 0 - 120 kg

Mobile as cylinder cart

In practice, the device covers two important functions. The integrated vacuum pump is the core component of the device. This vacuum pump evacuates the air down to < 1 mbar so that no air/gas mixture is produced during the subsequent filling process. The well proven DILO coupling principle ensures safe handling without emission.

Using the 3-001-4-R022 version the filling weight can be registered comfortably by means of a weighing scale. The weight is indicated on the illuminated display which switches off automatically if the scales are not used for a certain time. Thanks to the tare function high precision quantification of gas inputs and outputs is possible.

Other features:

Stable Frame

Accuracy of the weighing scales ± 20 g, 10 g increments

Integrated serial interface for data exchange or monitoring

No emissions by self-closing couplings

Hose reel

Available as accessories for the world's most commonly used bottle connections
