Mega Series

Maintenance device for large and extra large gas compartments

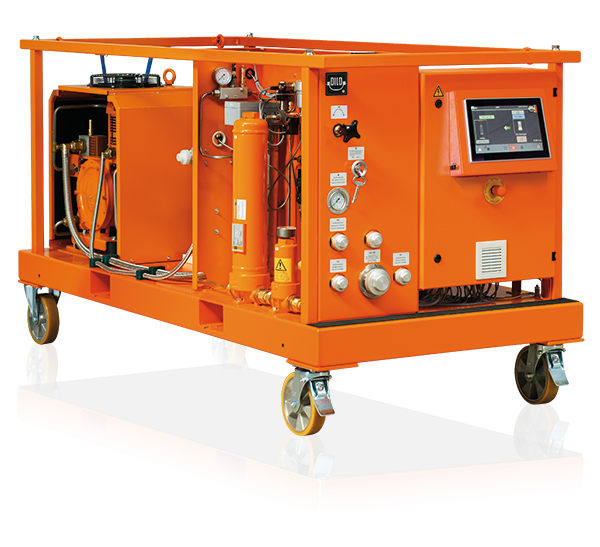

L170R01

The L170 service cart has been developed as entry-level model of the Mega Series for the gas handling on large gas compartments. Thanks to the state-of-the art control all functions run automatically and are displayed on a 10“ multi-touch screen. A new software with intuitive user navigation makes operation very easy and comfortable. This service cart can optionally be operated via smartphone, tablet or laptop.

Precondition for the construction of this series which allows SF6 gas recovery down to < 1 mbar was emission-free gas handling. When using the totally gastight DILO couplings and connecting systems emissions will have no chance! Short gas recovery and evacuating times are obtained by using a coupling DN40.

The L170 series is available with a second DN20 connecting coupling (as option) so that two work steps can be carried out simultaneously. Thus it is possible to evacuate air from a gas compartment while filling SF6 at the same time or recovering gas from another gas compartment. Multitasking in practice.

Other features:

Devices for liquid storage of SF6 gas

SF6 gas recovery down to < 1 mbar

Automatic control and high quality capacitive 10" multi-touch screen

Optional remote control via mobile devices

Reversing switch for direction of rotation

Digital weighing scales for SF6 cylinders

Residual gas recovery down to 1 mbar during filter change

Reduction to transport pressure as integrated special function

All versions are available with tanks which can be assembled under the device with CE marking also available with SQL and ASME approval

The service carts can be mounted on a trailer
