Micro Series

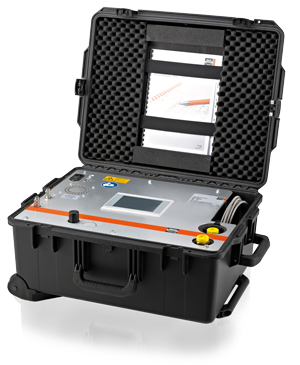

Portable service unit for the handling of small SF6 gas quantities

B160R92S16

Operating voltage: 220 - 240 V/50Hz

B160R92S15

Operating voltage: 100 - 127 V/50-60 Hz and 220 V/60 Hz

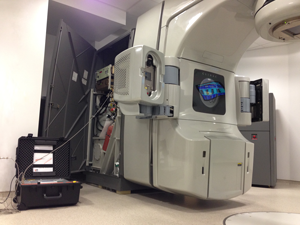

This compact service unit has been specially designed for very small gas quantities and is perfectly suited for applications such as SF6 gas handling on medical devices, electron microscopes or medium voltage components.

The device includes all functions required for professional and emission-free SF6 gas handling such as: gas recovery down to < 10 mbar, purification during the recovery and filling process, gaseous storage in an internal vessel or external pressure tank, evacuation of air to < 10 mbar with automatic switch-off as well as automatic filling of the gas compartment until reaching the desired final pressure.
All functions run fully automated and can be easily set on the coloured touch panel.

Other features:

SF6 recovery down to < 10 mbar

Gaseous storage of SF6

Internal storage tank (capacity: 2 l)

Menu navigation via 5.7“ coloured touch panel

Pressure and vacuum units can be changed

Comfortable trolley version
