SF6 gas refilling device with electronic weighing scales 0 - 120 kg

For reliable refilling of SF6 gas by overpressure

3-001-R021

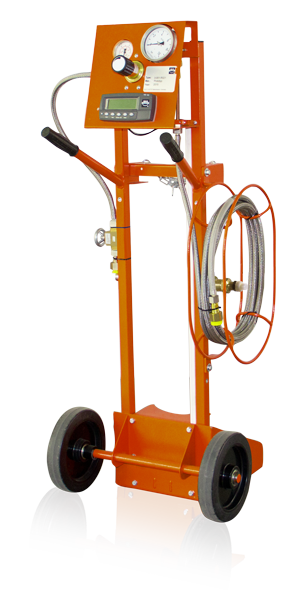

Mobile as cylinder cart with wire braided hoses

Refilling device as cylinder cart for comfortable on board carrying of a gas bottle. The primary gauge of the pressure reducer displays the bottle pressure in bar, psi and kPa. The secondary gauge indicates the desired filling pressure to be set easily by means of the handle. The bottle pressure can be reduced to the desired filling pressure by the integrated pressure reducer.

The weight of the gas to be refilled can be registered easily by means of integrated weighing scales. The weight is indicated on the illuminated display which switches off automatically if the scales are not used for a certain time. Thanks to the tare function high precision quantification of gas inputs and outputs is possible.

Other features:

Stable Frame

Accuracy of the weighing scales ± 20 g, 10 g increments

Integrated serial interface for data exchange or monitoring

No emissions by self-closing couplings

Hose reel

Couplings can be exchanged without any gas loss

Available as accessories for the world's most commonly used bottle connections
