Alternative Insulating Gases

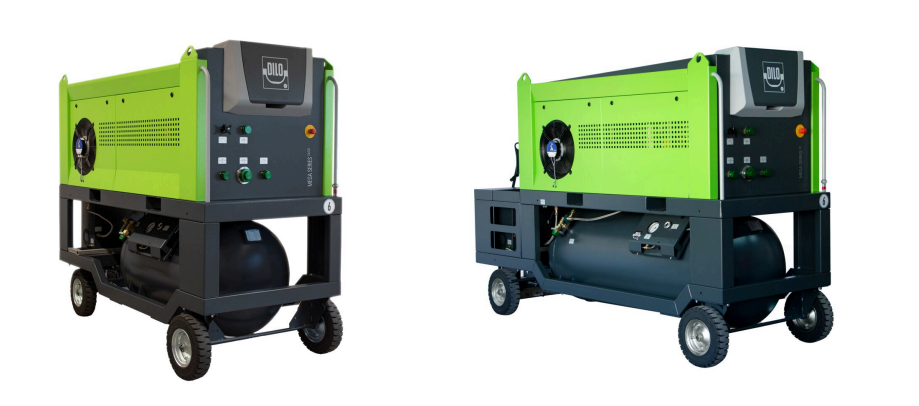

C4-G057R01V1 Economy Series for C4-FN
| Dimensions (W x H x D) | 1,000 x 2,020 x 1,850 mm - Standard version (600 l pressure vessel) |
| Weight | 1,280 kg - Standard version (600 l pressure vessel) |
| Dimensions (W x H x D) | 1,185 x 2,110 x 2,650 mm - Version: 600 l pressure vessel, chassis with solid tyre wheels |
| Weight | 1,400 kg above-mentioned version |
| Dimensions (W x H x D) | 1,000 x 2,020 x 2,600 mm - Version: 1000 l pressure vessel, fixing and steerable rollers |
| Weight | 1,540 kg above-mentioned version |
| Dimensions (W x H x D) | 1,185 x 2,110 x 3,350 mm - Version: 1000 l pressure vessel, chassis with solid tyred wheels |
| Weight | 1,660 kg above-mentioned version |
| Ambient temperature | 0 to +45 °C |
| Operating temperature | 0 to +45 °C |
| Storage temperature | -20 to +60 °C |
| Protection class | IP54 |
| Sound level | < 70 dB |

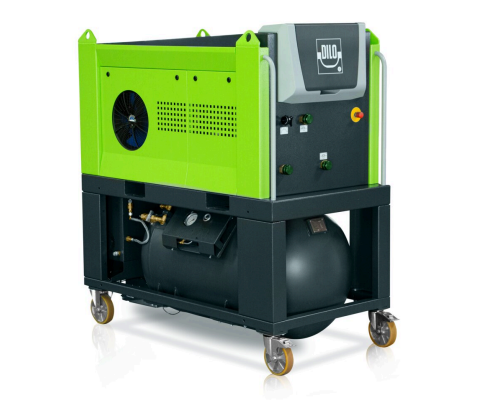

C4-G170R01V1 Mega Series for C4-FN
| Dimensions (W x H x D) | 1,185 x 2,100 x 2,650 mm - Standard version (600 l pressure vessel) |
| Weight | 1,670 kg - Standard version (600 l pressure vessel) |
| Dimensions (W x H x D) | 1,185 x 2,100 x 3,350 mm - Version: 1000 l pressure vessel, chassis with solid tyre wheels |
| Weight | 1,930 kg above-mentioned version |
| Ambient temperature | 0 to +45 °C |
| Operating temperature | 0 to +45 °C |
| Storage temperature | -20 to +60 °C |
| Protection class | IP54 |
| Sound level | < 70 dB |

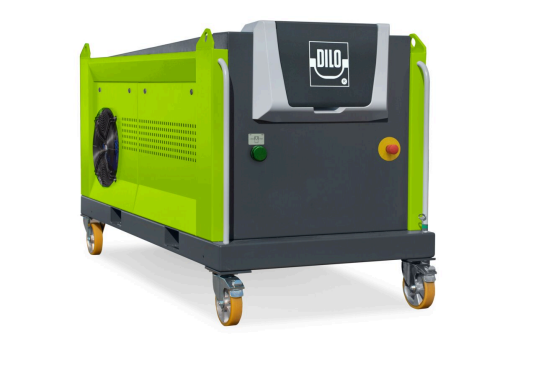

C4-G057R51V1 Economy Reclaimer für C4-FN
| Dimensions (W x H x D) | 1,000 x 1,350 x 1,850 mm |
| Weight | 630 kg |
| Ambient temperature | 0 to +45 °C |
| Operating temperature | 0 to +45 °C |
| Storage temperature | -20 to +60 °C |
| Protection class | IP65 |
| Sound level | 70 dB |

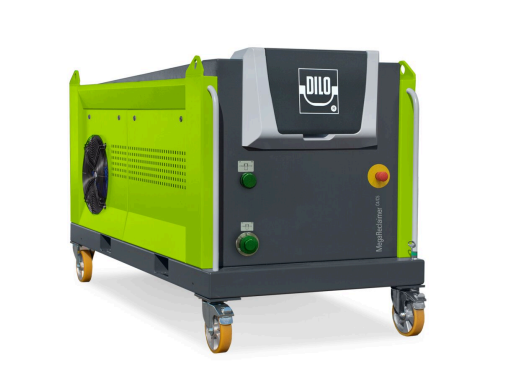

C4-G170R51V1 Mega Reclaimer for C4-FN
| Dimensions (W x H x D) | 1,100 x 1,350 x 2,350 mm |
| Weight | 880 kg |
| Ambient temperature | 0 to +45 °C |
| Operating temperature | 0 to +45 °C |
| Storage temperature | -20 to +60 °C |
| Protection class | IP54 |
| Sound level | 70 dB |
