B052INDIAR33 ( Without tank)
Home – B052INDIAR33 ( Without tank)

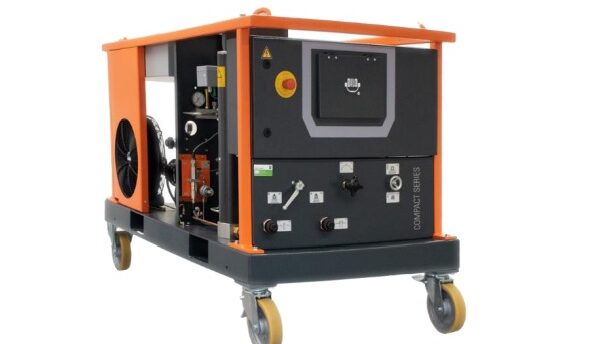

The service cart of the Compact series for liquid storage offers the best entry into professional gas handling.
Equipped with the well-proven DILO components this service cart allows the recovery, filling and purification of SF6 gas as well as the evacuation of air and venting of gas compartments. Thus, a 300 L gas compartment with 17.5 kg and 7 bar pe using DN20 hose can be recovered down to 5 mbar in only 75 mins. (TÜV SÜD certified)
This service cart offers semi-automatic operation via a 3,5″ touch screen with protective cover shielding from sunlight and dust. It is the compact solution for emission-free gas handling thanks to self-closing DILO couplings DN20.
Standard version:
■ Oil-free DILO compressor ( 6.5 m3/h (at 50 Hz))
■ Oil-free vacuum compressor for recovery of SF6 (4.8 m3/h; final vacuum < 5 mbar)
■ Vacuum pump for evacuation of air; delivery rate (40 m3/h [at 50 Hz], final vacuum < 1 mbar)
■ Dry filter (water absorption capacity 175 g at a dew point of -36 °C)
■ Particle filter 1 μm
■ Operation and indication of important process parameters via 3,5″ touch screen with protective
cover
■ Indication units in bar / mbar, kPa or psi / torr to be selected on the touch screen
■ Fork lift slots
■ Crane eyelets
■ Standard cylinder connections
■ Wrenches for DILO couplings and filters
■ Tarpaulin cover for device protection
■ Digital weighing scales for SF6 cylinders (with automatic shutdown), 0 – 120 kg with tare
function, accuracy ±0.02 %
■ Made in India
Features:
– Gas Recovery : < 5 mbar
– Filling Of Gas : 0 – 10 Bar
– Evacuation Of Air : < 1 mbar
– Maximum Storage Pressure : 50 Bar
– Recommended Gas Quantity : < 300 Kg
– Operation : Semi-Automatic
– Operating Voltage : 380- 440V
– Ambient temperature : 0 to +50 °C
– Operating temperature : 0 to +45 °C
– Storage temperature : -20 to +60 °C
– Protection class : IP54
– Dimension ( L x W x H ) ( in mm ) : 1850 x 950 x 1200
– Weight ( kg ) : 550 kg
Optional Accessories ( Additonal Price) :
– 6-1017-R050 : 5m long rubber hose DN20 with DILO coupling tongue part DN20 on both ends.
– 6-1017-R100 : 10 m long rubber hose DN20 with DILO coupling tongue part DN20 on both ends.
– 6-1017-R150 : 15m long rubber hose DN20 with DILO coupling tongue part DN20 on both ends.
– B179R21B052 : 300 L storage tank / 50bar
– B179R21B052 : 50 kg Cylinder
