Sf6 Gas Leak Detectors

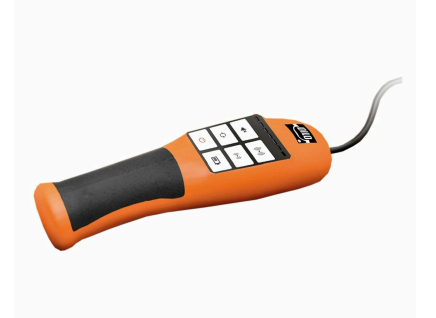

3-033-R002 SF -LeakPointer
| Measuring principle | Ionisation by means of electrical high voltage |
| Ambient moisture | ≤ 90% relative moisture non condensing during operation |
| Dimensions (W x H x D) | 65 x 229 x 65 mm with transport case |
| Indication | 7 segment LED measuring range display and acoustic signal (can be switched off) |
| Sensitivity | 5 g/y SF₆ |
| Length | 355 mm sensor |
| Power supply | 2 × 1.5 V alkaline batteries C LR14 (not included in scope of supply) |
| Response time | < 1 sec T90 |
| Reset time | ≈ 1 sec |
| Weight | 0.56 kg with transport case and accessories |
| Operating temperature | 0 to +52 °C |

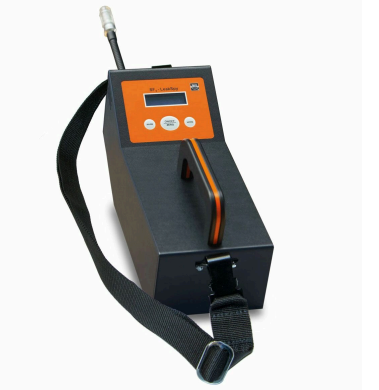

3-033-R200 LeakSpy
| Dimensions (W x H x D) | 125 x 142 x 280 mm |
| Length | 300 mm sensor |
| Weight | 1.58 kg |
| Power supply | Lithium ion batteries (operating time > 12 hours) |
| Sensitivity | 3 g/y SF₆ |
| Response time | < 1 sec T90 |
| Storage temperature | -10 to +60 °C |
| Detection limit | 3 ppm SF₆ |
| Operating temperature | 0 to +50 °C |
| Measuring principle | Non-dispersive infrared sensor (NDIR) |
| Indication | Graphic display + audible signal |
| Resolution | 1 ppm |
| Accuracy |
< 50 ppmv: ±4% (±2 ppmv) 50–100 ppmv: ±5% (±5 ppmv) 100–1000 ppmv: ±2% (±20 ppmv) |
| Indication unit | ppm, g/y, cc/s |
| Measuring range | 0 – 1000 ppm SF₆ |
