Sf6 Gas Measuring Devices

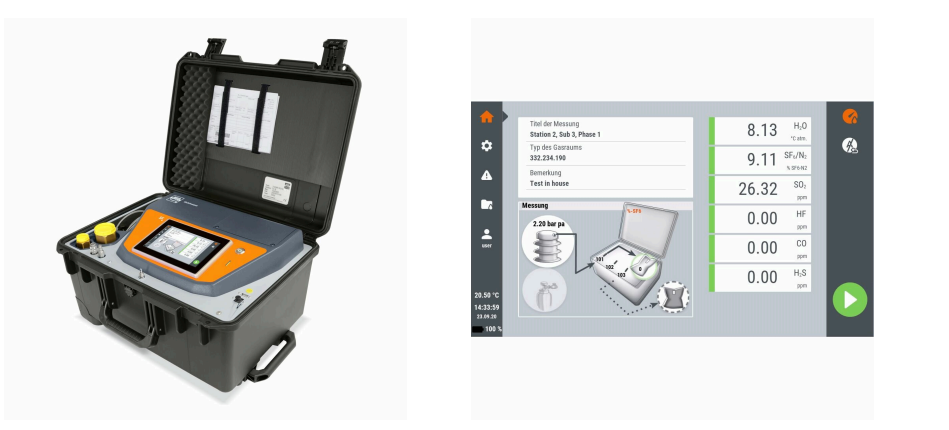

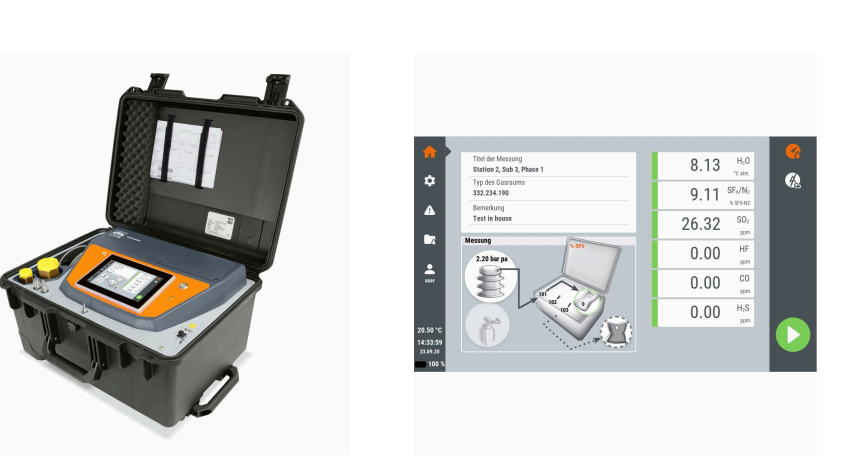

3-038R-R... MultiAnalyser
Dimensions Depth 406 mm, Width 538 mm, Height 269 mm
Weight 24 kg
Inlet pressure pe 0.2 - 35 bar
Operating temperature -10 °C to +50 °C
Ambient moisture max. 90% relative moisture, non condensing during operation
Operating voltage 85-264 VAC, 47-63 Hz
Number of measured
values to be stored		 max. 500
Interface USB/LAN
Measuring time variably calculated by the system, max. 9 minutes
Flow rate 20 L/h (SF₆)
Moisture concentration
indication		 in dew point °C or °F, referred to atmospheric or inlet pressure, reversible to ppmᵥ, ppm𝓌
Inlet pressure indication in bar, psi, MPa and kPa (in pₐ or pₑ)
More Details

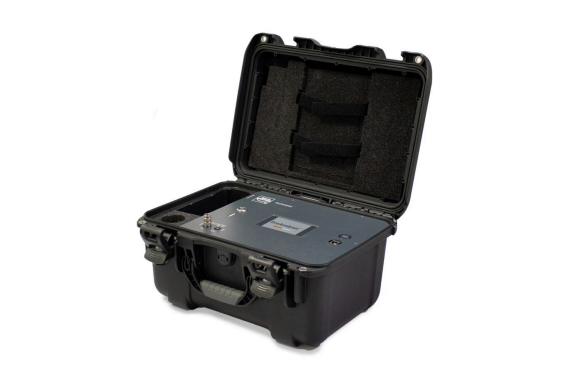

MGE010- EcoAnalyser
Dimensions (W x H x D)429 x 328 x 236 mm
Weight8.5 kg
Operating temperature-10 to +50 °C
Storage temperature-10 to +40 °C
Ambient moisture90 % relative moisture non condensing during operation
Inlet pressure pe0.5 - 15 bar
Operating voltage100 - 240 V AC (power supply unit)
Frequency50 - 60 Hz
Operating voltage28 - 32 V DC (device)
InterfaceUSB/LAN
Power supplyrechargeable NiMH-battery
Max. output pressure0.1 bar pe
Protection classIP67 (device closed) / IP20 (device opened)
Battery charging
temperature		0 to 30 °C
More Details

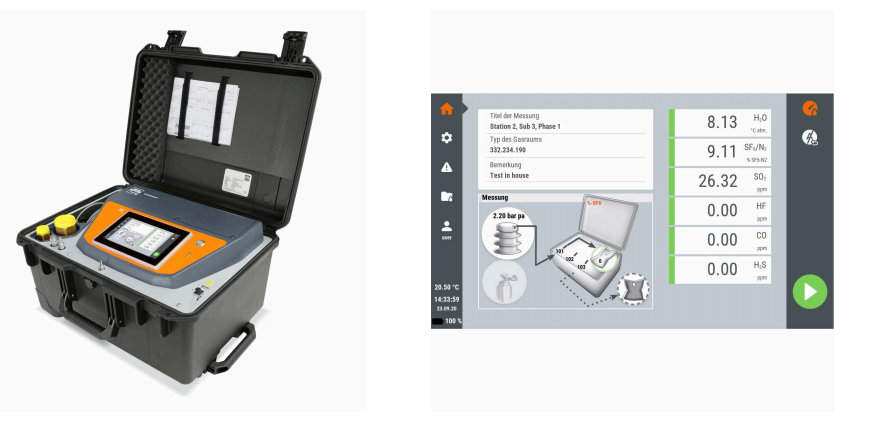

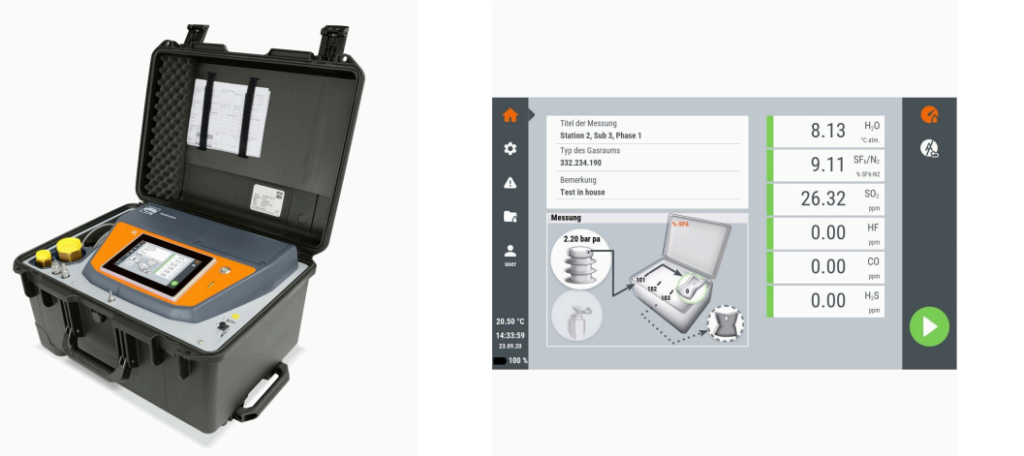

3-038R-R102V2-B MultiAnalyser

Dimensions (W x H x D) 538 x 269 x 406 mm
Weight 24 kg
Inlet pressure pe 0.2 - 35 bar
Operating temperature -10 to +50 °C
Ambient moisture ≤ 90 %
Operating voltage 85 - 264 V AC
Frequency 47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
Interface USB / LAN / WiFi
Measuring time ≤ 7 variable calculated by the system
Flow rate 20 l/h SF6
Protection class IP65 (device closed) / IP20 (device opened)
Measuring range of
moisture sensor		 -60 to +20 °C
Measuring accuracy of
moisture sensor		 ± 3 °C (to < -40 °C)
Measuring principle
of moisture sensor		 Electronic dew point measurement (capacitive)
More Detail

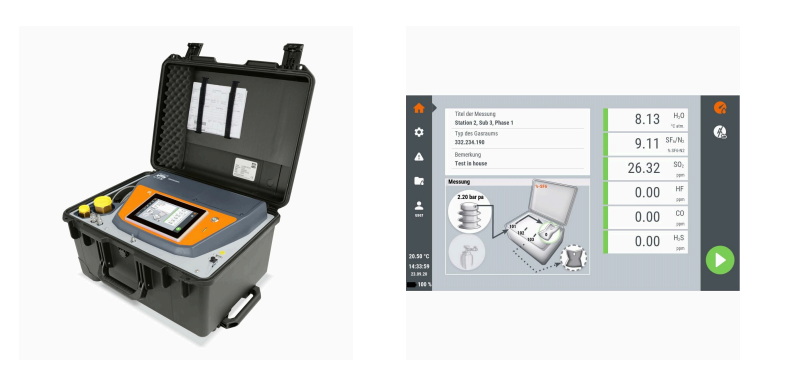

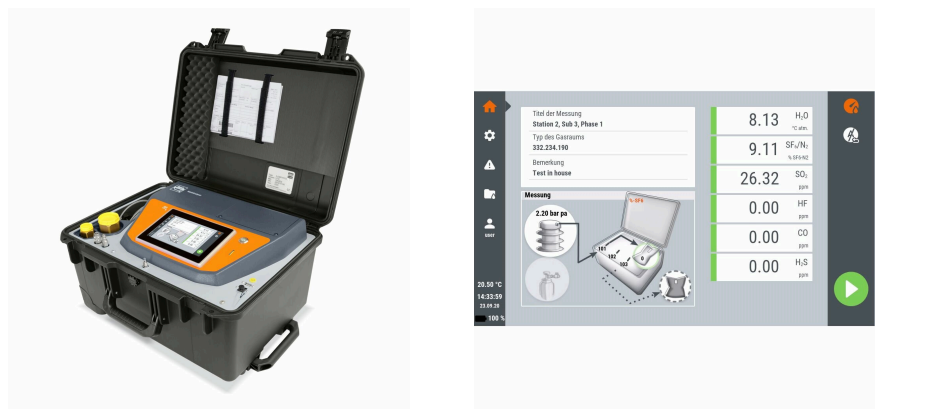

3-038R-R301V2-B Multi-analyzer

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 – 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring principle of SO2 sensorElectrochemical reaction
Measuring range of SO2 sensor0 - 20 ppmv
Measuring accuracy of SO2 sensor< ± 2 % of measuring range
More Details

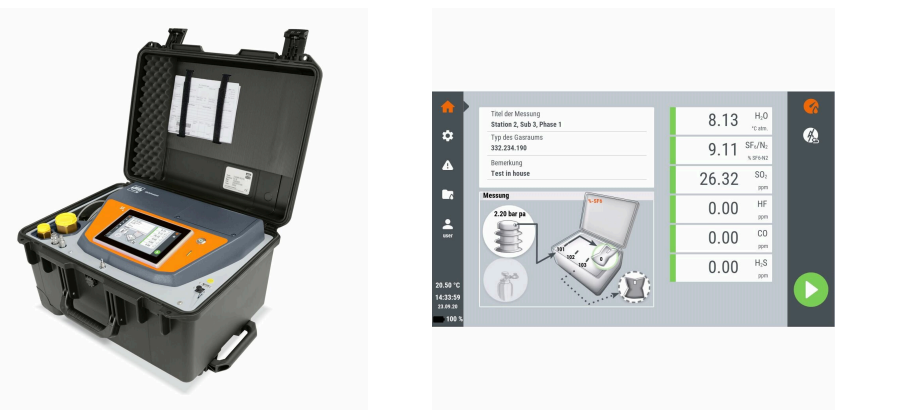

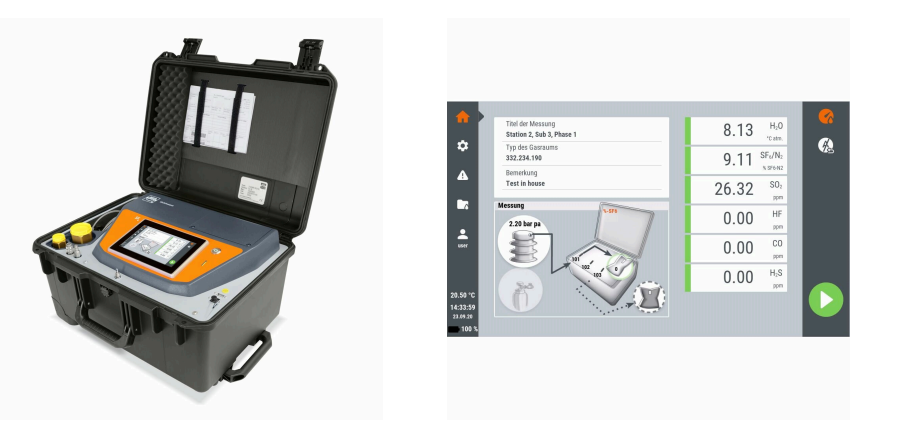

3-038R-R303V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range
of vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range
of moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of SO2 sensorElectrochemical reaction
Measuring range of SO2 sensor0 - 500 ppmv
Measuring accuracy of SO2 sensor< ± 2 % of measuring range
more details

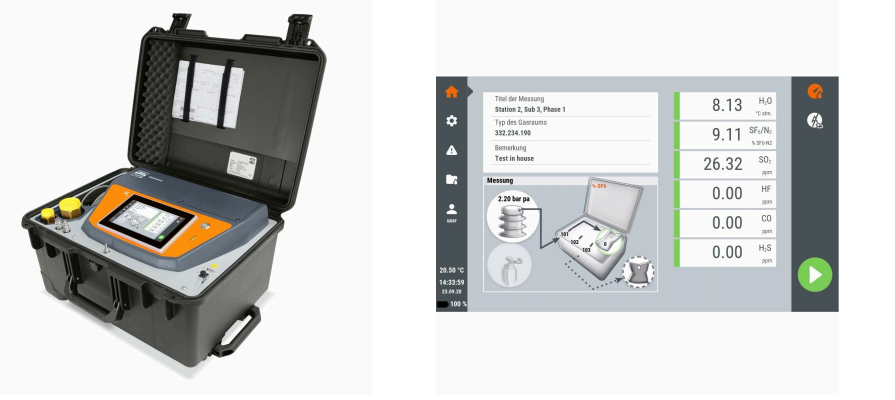

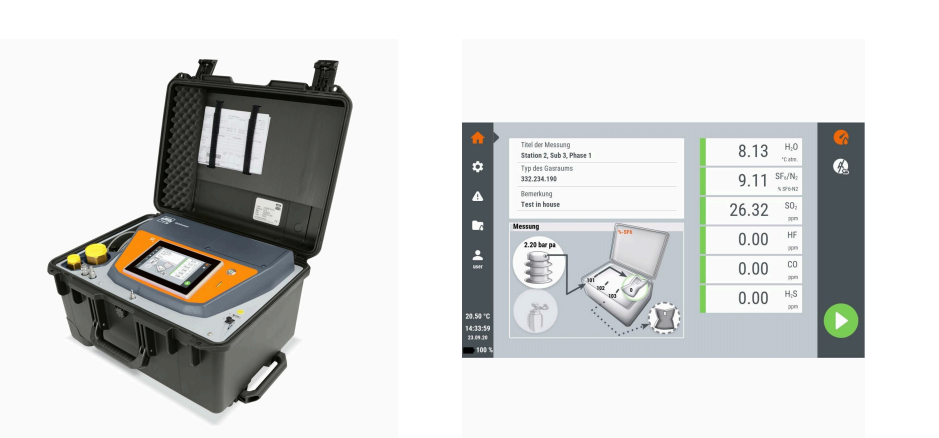

3-038R-R313V2-B Multi-analyzer

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring principle
of SO2 sensor		Electrochemical reaction
Measuring range
of SO2 sensor		0 - 500 ppmv
Measuring accuracy
of SO2 sensor		< ± 2 % of measuring range
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 2 vol.-%
more details

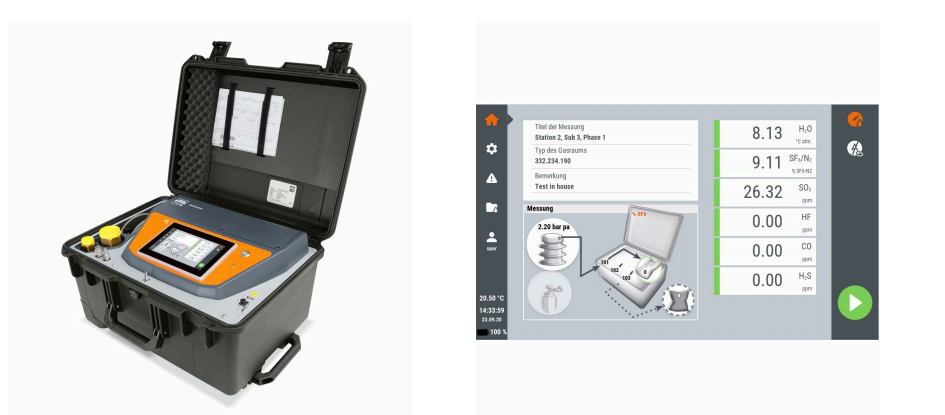

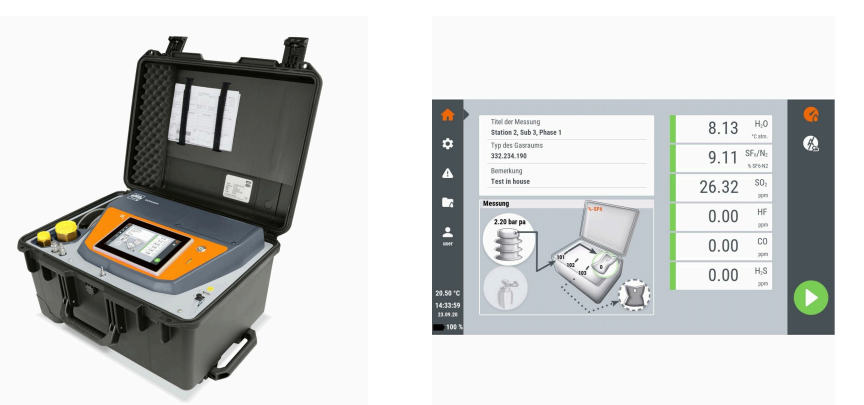

3-038R-R402V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle of
vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 3 °C (to <-40 °C)
Measuring accuracy of
moisture sensor		± 2 °C (to >-40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of SO₂ sensor0 - 20 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
More Details

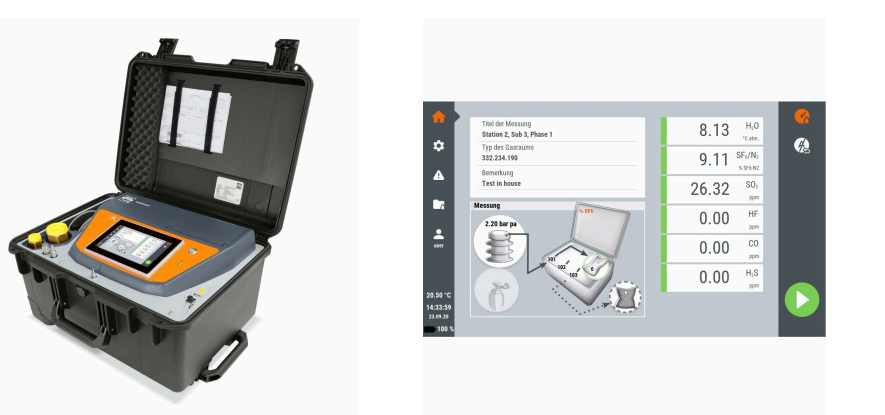

3-038R-R413V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle of
moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy of
moisture sensor		± 2 °C (to > -40 °C)
Measuring accuracy of
moisture sensor		± 3 °C (to < -40 °C)
Measuring principle of
SO₂ sensor		Electrochemical reaction
Measuring range of SO₂ sensor0 - 500 ppmv
Measuring accuracy of
SO₂ sensor		< ± 2 % of measuring range
Measuring principle of
HF sensor		Electrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of
HF sensor		< ± 10 % of measuring range
Measuring principle of
vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 2 vol.-%
More Details

3-038R-R602V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle of
moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy of
moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of
SO₂ sensor		Electrochemical reaction
Measuring range of SO₂ sensor0 - 20 ppmv
Measuring accuracy of
SO₂ sensor		< ± 2 % of measuring range
Measuring principle
of HF sensor		Electrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
Measuring principle of H₂S sensorElectrochemical reaction
Measuring range of H₂S sensor0 - 100 ppm
Measuring accuracy of H₂S sensor< ± 2 % of measuring range
Measuring principle of CO sensorElectrochemical reaction
More Details
3-038R-R613 MultiAnalyser
Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle of
vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 – 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of SO₂ sensor0 - 500 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
Measuring principle of H₂S sensorElectrochemical reaction
Measuring range of H₂S sensor0 - 100 ppm
Measuring accuracy of H₂S sensor< ± 2 % of measuring range
Measuring principle of CO sensorElectrochemical reaction
More Details
3-038R-R101V2-B Multi-analyzer
Dimensions (W x H x D) 538 x 269 x 406 mm
Weight 24 kg
Inlet pressure pe 0.2 - 35 bar
Operating temperature -10 to +50 °C
Ambient moisture ≤ 90 %
Operating voltage 85 - 264 V AC
Frequency 47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
Interface USB / LAN / WiFi
Measuring time ≤ 7 variable calculated by the system
Flow rate 20 l/h SF₆
Protection class IP65 (device closed) / IP20 (device opened)
Measuring range of
vol.-% sensor		 0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		 ± 0.5 vol.-%
Measuring principle of
vol.-% sensor		 Velocity of sound
More Details

3-038R-R201V2-B MultiAnalyser

Dimensions (W x H x D) 538 x 269 x 406 mm
Weight 24 kg
Inlet pressure pe 0.2 - 35 bar
Operating temperature -10 to +50 °C
Ambient moisture ≤ 90 %
Operating voltage 85 - 264 V AC
Frequency 47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
Interface USB / LAN / WiFi
Measuring time ≤ 7 variable calculated by the system
Flow rate 20 l/h SF6
Protection class IP65 (device closed) / IP20 (device opened)
Measuring principle of
moisture sensor		 Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		 -60 to +20 °C
Measuring accuracy of
moisture sensor		 ± 3 °C
Measuring principle of
vol.-% sensor		 Velocity of sound
Measuring range of
vol.-% sensor		 0 – 100 vol.-%
Measuring accuracy of
vol.-% sensor		 ± 0.5 vol.-%
More Detail

3-038R-R302V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring accuracy
of moisture sensor		± 3 °C (at > -40 °C)
Measuring range
of moisture sensor		-60 to +20 °C
Measuring principle
of SO2 sensor		Electrochemical reaction
Measuring range
of SO2 sensor		0 - 100 ppmv
Measuring accuracy
of SO2 sensor		< ± 2 % of measuring range
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 0.5 vol.-%
More Details

3-038R-R312V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		 500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring principle
of SO2 sensor		Electrochemical reaction
Measuring range of
SO2 sensor		0 - 100 ppmv
Measuring accuracy
of SO2 sensor		< ± 2 % of measuring range
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 2 vol.-%
more details

3-038R-R401 MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF6
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle of
vol.-% sensor		Velocity of sound
Measuring range of vol.-% sensor0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle of
moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 3 °C (to <-40 °C)
Measuring accuracy of
moisture sensor		± 2 °C (to >-40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of SO₂
sensor		0 - 20 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
More Details

3-038R-R403V2-B Multi-analyzer

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy of
moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of
SO₂ sensor		0 - 500 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
More Details

3-038R-R601 MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle
of vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy
of vol.-% sensor		± 0.5 vol.-%
Measuring principle
of moisture sensor		Electronic dew point measurement (capacitive)
Measuring range
of moisture sensor		-60 to +20 °C
Measuring accuracy
of moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy
of moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of SO₂ sensor0 - 20 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
Measuring principle of H₂S sensorElectrochemical reaction
Measuring range of H₂S sensor0 - 100 ppm
Measuring accuracy of H₂S sensor< ± 2 % of measuring range
Measuring principle of CO sensorElectrochemical reaction
More Details

3-038R-R603V2-B MultiAnalyser

Dimensions (W x H x D)538 x 269 x 406 mm
Weight24 kg
Inlet pressure pe0.2 - 35 bar
Operating temperature-10 to +50 °C
Ambient moisture≤ 90 %
Operating voltage85 - 264 V AC
Frequency47 - 63 Hz (exchangeable battery)
Number of max. measured
values to be stored		500
InterfaceUSB / LAN / WiFi
Measuring time≤ 7 variable calculated by the system
Flow rate20 l/h SF₆
Protection classIP65 (device closed) / IP20 (device opened)
Measuring principle of
vol.-% sensor		Velocity of sound
Measuring range of
vol.-% sensor		0 - 100 vol.-%
Measuring accuracy of
vol.-% sensor		± 0.5 vol.-%
Measuring principle of
moisture sensor		Electronic dew point measurement (capacitive)
Measuring range of
moisture sensor		-60 to +20 °C
Measuring accuracy of
moisture sensor		± 3 °C (to < -40 °C)
Measuring accuracy of
moisture sensor		± 2 °C (to > -40 °C)
Measuring principle of SO₂ sensorElectrochemical reaction
Measuring range of SO₂ sensor0 - 20 ppmv
Measuring accuracy of SO₂ sensor< ± 2 % of measuring range
Measuring principle of HF sensorElectrochemical reaction
Measuring range of HF sensor0 - 10 ppmv
Measuring accuracy of HF sensor< ± 10 % of measuring range
Measuring principle of H₂S sensorElectrochemical reaction
Measuring range of H₂S sensor0 - 100 ppm
Measuring accuracy of H₂S sensor< ± 2 % of measuring range
Measuring principle of CO sensorElectrochemical reaction
More Details

Follow us

Facebook X-twitter Youtube Linkedin Instagram
Contact us

© Copyrights Superphoenixllp 2025. All rights reserved.

Design by Creative Wave Tech.
